Other Machines

Mass Finishing Machine

Other Machines

Waste Water Treatment System

Available for surface finishing wastewater treatment
The system operates automatically and continuously
Water can be recycled continually for a long period of time
Compact design

Type	FAM500	FAM1000
Wastewater Collecting Tank	40 lt.	140 lt.
Flocculants Mixing Tank	370 lt.	1000 lt.
Sludge Cake Capacity	15 lt.	35 – 80 lt.
Pressed Sludge Tank Capacity	50 lt.	150 lt.
Wastewater Treatment Capacity	370 lt./h	1000 lt./h
Total Power	1.5 kW	3.4 kW
Voltage, Frequency	400 V x 50 Hz	400 V x 50 Hz
Weight	600 kg	1100 kg
Dimension	710 x 710 x 2120	1150 x 1150 x 3275

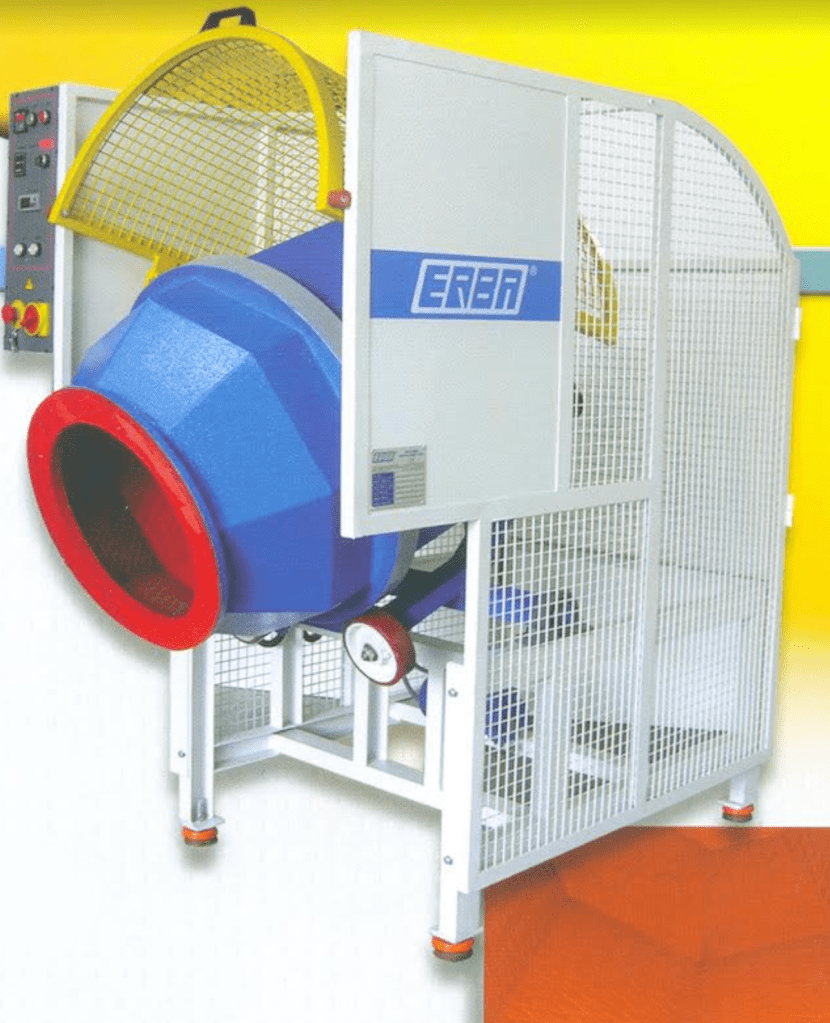

Tiltable Barrel Machine

Surface finishing possibilities for very small, thin, thin-long, and sensitive parts
Surface finishing possibilities for moving and messy parts like chain
Economic surface finishing possibilities for very long process time
Highly durable hot-poured polyurethane coated work container
Speed controller
Digital process timer
Digital disc speed indicator
Possibilities for continual, water, and chemical supplying and discharging

Type	TAM220
Gross Volume	220 lt.
Power	1.62 kW
Voltage / Frequency	400 AC – V / 50Hz
Devir Speed	0-25 0-35
Weight	475 kg
Dimension	1703 x 1852 mm

Single Barrel Machine

Machine Body is Made of Mild Steel
Front Receiving Tray for unloading part & media
Control Switch Timer and variable speed control

Model	Capacity (Litre)	Motor (kW)	Voltage	Weight (kg)	Dimension (LxWxH, mm)
SB-25	25	0.75	380V/50Hz/3Ph	100	680x700x750
SB-50	50	1		150	730x720x1200
SB-100	100	1.5		200	1020x900x1300
SB-200	200	3		500	1090x1000x1420
SB-300	300	3		560	1450x1000x1420
SB-500	500	7.5		1000	1660x1300x1520

Dry Dehydrating Machine

This machine is specially designed for drying or dehydrating products after the polishing or grinding process. As it is working, its interior temperature will be at 500C–800C. The operation is expected to take one to five minutes.

Model	KS-20
Basket Size	390 x 300 (H) mm.
Machine Size	800 x 680 (L) x 760 (H) mm.
Capacity	20 kg. (12 Litre)
Speed	460 RPM/min
Heat Pipe	2.5 Kw
Motor Power	0.75 Kw
Weight	140 Kgs.

Vibration Dryer Machine

The workpieces are easily separated from the granules with an integrated ramp, excellent drying abilities, an excellent heating system, modular operation in conjunction with other machinery, vibration-proof heating elements, isolations, and an optional spray PU-coated work bowl.

Model	Power (Litre)	Heating Element	Gross Volume (Litre)	Voltage	Weight (kg)
EVK 100	1.1	1500	30	400V/50Hz/3Ph	335
EVK 200	1.5	1800	60		420
EVK 350	3	2400	100		610
EVK 500	4	3600	150		1030
EVK 800	5.5	5400	200		1200
